When it comes to managing fluid flow in various industrial and commercial applications, few components are as versatile and dependable as the PVC butterfly valve. These valves have become a staple in systems requiring efficient, low-maintenance control, thanks to their simple design and robust construction. At Zhejiang HONGKE Valves factory, we’ve been crafting high-quality valves for over a decade, focusing on durability and innovation to meet the demands of modern industries. In this guide, we’ll dive deep into what makes a PVC butterfly valve an excellent choice, explore different types, and share tips on selection and installation.
Understanding the Basics of PVC Butterfly Valves
To appreciate the value of a PVC butterfly valve, it’s essential to start with the fundamentals. Essentially, a butterfly valve is a quarter-turn rotational motion valve used to stop, regulate, and start flow. The “butterfly” refers to the disc in the center of the valve that rotates to control the passage of fluids.
What Sets PVC Butterfly Valves Apart?
Unlike metal valves, those made from PVC (polyvinyl chloride) offer exceptional resistance to corrosion, making them ideal for environments where chemicals or moisture could degrade other materials. PVC is lightweight yet strong, which simplifies installation and reduces overall system weight. At our factory in Zhejiang, we prioritize using premium-grade PVC to ensure each valve withstands pressures up to 150 PSI, depending on the size and configuration.
One key advantage is their cost-effectiveness. PVC butterfly valves provide a budget-friendly alternative without sacrificing performance. They’re commonly used in water treatment plants, irrigation systems, and chemical processing facilities. For instance, the material’s non-reactive nature prevents contamination, which is crucial in food and beverage industries.
Key Components and How They Work
A typical PVC butterfly valve consists of a body, disc, stem, seat, and actuator. The body houses the disc, which pivots on the stem to open or close the flow path. The seat, often made from EPDM or Viton rubber, ensures a tight seal when closed. Actuators can be manual levers, gears, or even pneumatic for automated operations.
In operation, turning the handle 90 degrees aligns the disc with the flow for full open position or perpendicular for complete shutoff. This simplicity leads to minimal pressure drop across the valve, enhancing energy efficiency in piping systems.
Benefits of Using PVC Butterfly Valves in Your Systems
Investing in a PVC butterfly valve brings numerous advantages that can optimize your operations. Let’s break them down.
Corrosion Resistance and Longevity
PVC’s inherent properties make it highly resistant to acids, bases, and salts. This means less frequent replacements and lower maintenance costs over time. In harsh environments, such as coastal areas or chemical plants, these valves outlast their metal counterparts significantly.
Ease of Installation and Operation
Weighing much less than cast iron or steel valves, PVC models are easier to handle and install. No special tools are needed for basic setups, and their wafer or lug styles fit seamlessly between flanges. Plus, the quarter-turn operation allows for quick adjustments, improving workflow efficiency.
Versatility Across Applications
From low-pressure residential plumbing to high-volume industrial lines, PVC butterfly valves adapt well. They’re suitable for both on/off and throttling services, though they’re best for the former in most cases.
For more on valve types, check out this authoritative overview on butterfly valves from Wikipedia.
Exploring Different Types of PVC Butterfly Valves
Zhejiang HONGKE Valves factory offers a range of PVC butterfly valves tailored to specific needs. Here, we’ll highlight some popular variants.
The 1.8 PVC Butterfly Valve: Compact and Efficient
For smaller-scale applications, the 1.8 PVC butterfly valve stands out as a compact solution. Measuring around 1.8 inches in diameter, it’s perfect for precise flow control in limited spaces, such as laboratory setups or small irrigation lines. This size balances flow capacity with ease of integration, often featuring lever handles for manual operation. We’ve seen it perform reliably in water distribution systems where space is at a premium.

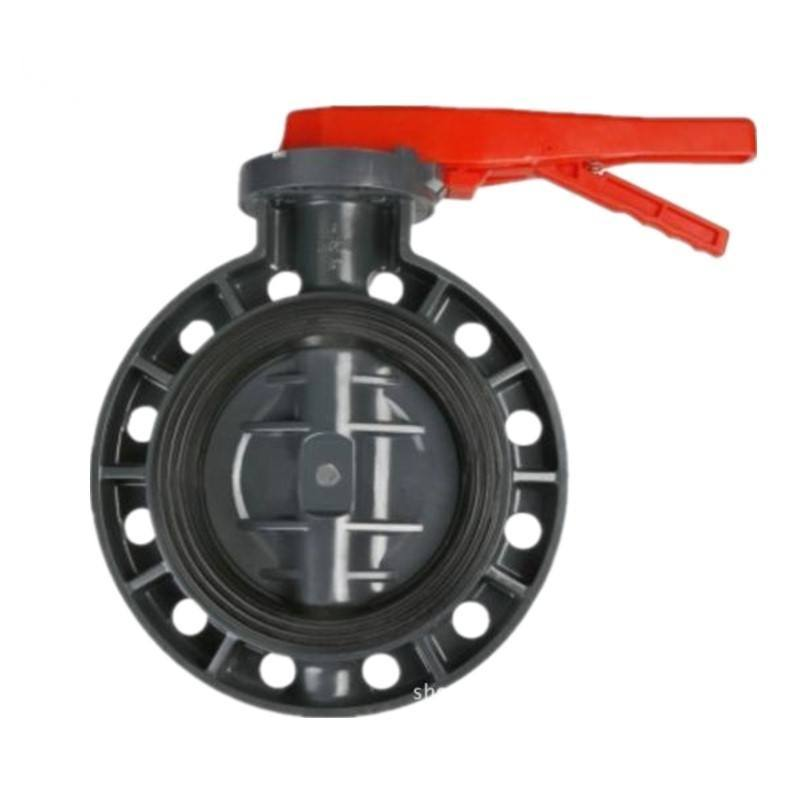

Flanged PVC Butterfly Valve: Secure Connections for Heavy-Duty Use
When secure, bolted connections are required, the flanged PVC butterfly valve is the go-to choice. These valves come with integral flanges that bolt directly to mating pipes, providing a sturdy seal against leaks. Ideal for larger pipelines, they handle higher pressures and are commonly used in wastewater treatment. At our factory, we ensure the flanges meet international standards like ANSI or ISO for compatibility.
100mm PVC Butterfly Valve: Handling Larger Flows
For medium to large systems, the 100mm PVC butterfly valve offers ample flow capacity. Equivalent to about 4 inches, this size is favored in commercial plumbing and agricultural irrigation. It can manage substantial volumes while maintaining low pressure loss. Our versions include gear operators for smoother control in high-torque scenarios.
Interested in similar products? Visit our PVC ball valve collection for complementary options.
Applications Where PVC Butterfly Valves Excel
The adaptability of PVC butterfly valves makes them indispensable across industries.
Water Treatment and Distribution
In municipal water systems, these valves regulate flow in filtration and pumping stations. Their non-corrosive nature ensures safe drinking water delivery.
Chemical Processing Industries
Handling aggressive chemicals is no issue for PVC. Factories use them to control acids and solvents without risk of material breakdown.
Irrigation and Agriculture
Farmers rely on the 100mm PVC butterfly valve for efficient water distribution in fields. Lightweight design aids in portable setups.
HVAC and Building Services
In heating, ventilation, and air conditioning, they manage coolant flows, contributing to energy savings.
For specialized fittings, explore our PVC pipe fittings page.
Why Choose Zhejiang HONGKE Valves Factory for Your PVC Butterfly Valve Needs
Since our founding in 2008 by Mr. Zeng Hongke and Ms. Kong Linmei, Zhejiang HONGKE Valves has grown into a trusted manufacturer of plastic valves and fittings. Located in Yiwu, we integrate research, development, and production to deliver top-tier products.
Commitment to Quality
Every PVC butterfly valve undergoes rigorous testing for pressure, seal integrity, and durability. We use only virgin PVC materials to avoid impurities that could compromise performance.
Customization Options
Need a specific size like the flanged PVC butterfly valve in custom colors? Our team can tailor solutions to your specifications.
Customer-Centric Approach
We offer competitive pricing, fast shipping, and excellent after-sales support. Many clients return for our reliability.
Browse our full range at Hongke’s main product catalog.
Installation Tips for PVC Butterfly Valves
Proper installation ensures longevity and optimal function.
Preparation Steps
Inspect the valve for damage. Align it between flanges, ensuring the disc is partially open to avoid seat damage.
Mounting Techniques
For wafer-style, sandwich between two flanges with bolts. Lug types allow end-of-line service. Use gaskets if needed, though many PVC seats double as such.
Common Mistakes to Avoid
Over-tightening bolts can crack PVC. Always torque to manufacturer specs. Also, ensure the system is depressurized before installation.
Maintenance Best Practices
Regularly lubricate stems and check seats for wear. Clean with mild soap; avoid harsh chemicals on PVC.
In cold climates, insulate to prevent freezing.
Troubleshooting Common Issues with PVC Butterfly Valves
Even the best valves can encounter problems. Here’s how to address them.
Leaks at Connections
Often due to improper alignment. Reinstall with even bolt tension.
Stiff Operation
Buildup on the stem—clean and lubricate. If persistent, replace the actuator.
Reduced Flow
Disc not fully opening; check for obstructions or actuator failure.
Future Trends in PVC Butterfly Valve Technology
Looking ahead, advancements include smart actuators with IoT integration for remote monitoring. Sustainable PVC formulations are also emerging, reducing environmental impact.
At Zhejiang HONGKE Valves, we’re investing in these innovations to stay ahead.
Conclusion: Making the Right Choice with PVC Butterfly Valves
In summary, a PVC butterfly valve from Zhejiang HONGKE Valves factory represents reliability, efficiency, and value. Whether you opt for the compact 1.8 PVC butterfly valve, the robust flanged PVC butterfly valve, or the versatile 100mm PVC butterfly valve, you’re investing in a component that enhances your system’s performance. Contact us today to discuss your needs and experience the difference quality makes.
