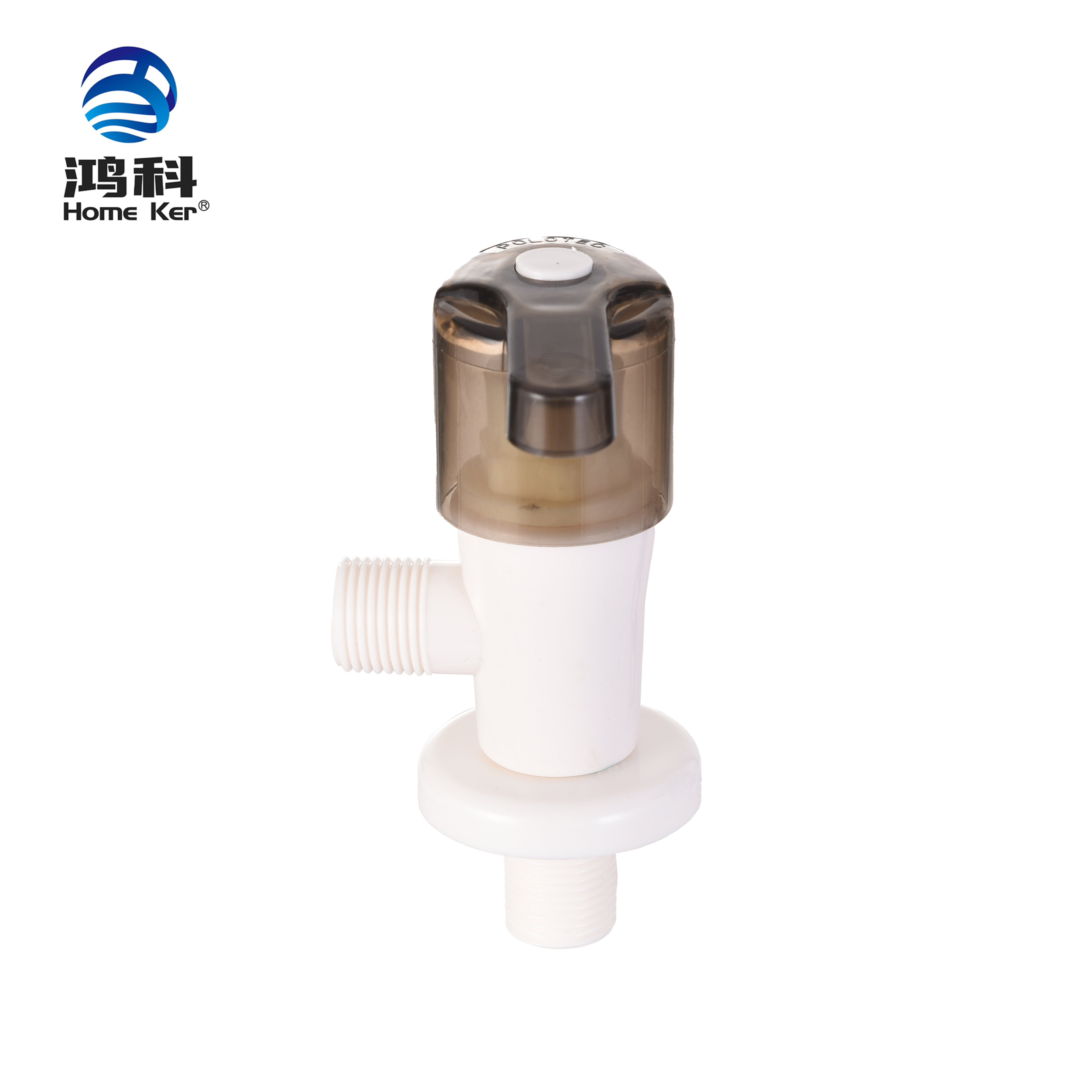

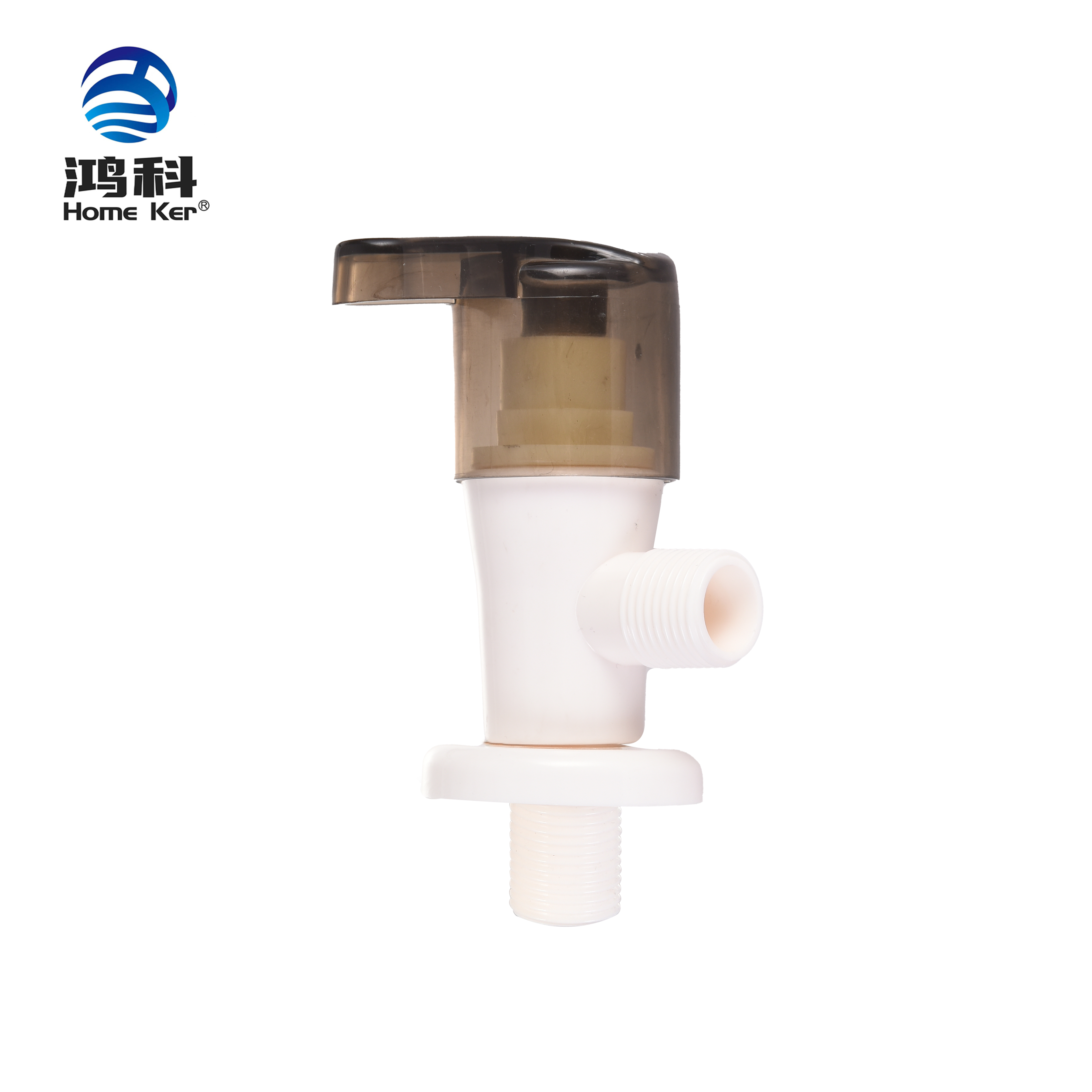

angle stop valve ABS

Short Description:

With the new upgraded plastic ABS angle valve, we have optimized the handle set of the switch on the basis of the original. The significance of optimizing this setting is to consider that it can be more labor-saving when opening and closing the angle valve, and it can prevent the inconvenience of sliding the switch by hand.

  • icons-(1)
  • icons-(2)
  • icons-(3)
  • icons-(4)
  • icons-(5)

Product Detail

Product Tags

Angle valve features

The angle valve is an angle globe valve. The angle valve is similar to the ball valve, and its structure and characteristics are modified from the ball valve. The difference with the ball valve is that the outlet of the angle valve is at a right angle of 90 degrees to the inlet. The angle valve is also called triangle valve, angle valve, or angle water valve. This is because the pipe is in a 90-degree corner shape at the angle valve, so it is called an angle valve, an angle valve, and an angle valve.

Angle valve action:

1. The flow path is simple, and the dead zone and eddy current zone are small. With the help of the scouring effect of the medium itself, it can effectively prevent the medium from clogging, that is, it has better self-cleaning performance.

2. The flow resistance is small, and the flow coefficient is larger than that of the single-seat valve, which is equivalent to the flow coefficient of the double-seat valve.

3. It is suitable for occasions with high viscosity, suspended solids, and granular fluids, or where right-angle piping is required. The flow direction is generally bottom in and sides out.

4. In special cases, it can be reversed, that is, the flow is side-in and bottom-out.






Thread Size


1/2'' x1/2''


Turning type


1/4 rotation/turning




About 85 g






Bears Temperature




Test Pressure


0.6 Mpa-0.8Mpa




White bodyBlack transparent handle




200/240 a box ; 1pc/pp bag

 customize Contact us and we will provide you with customized brand solutions
